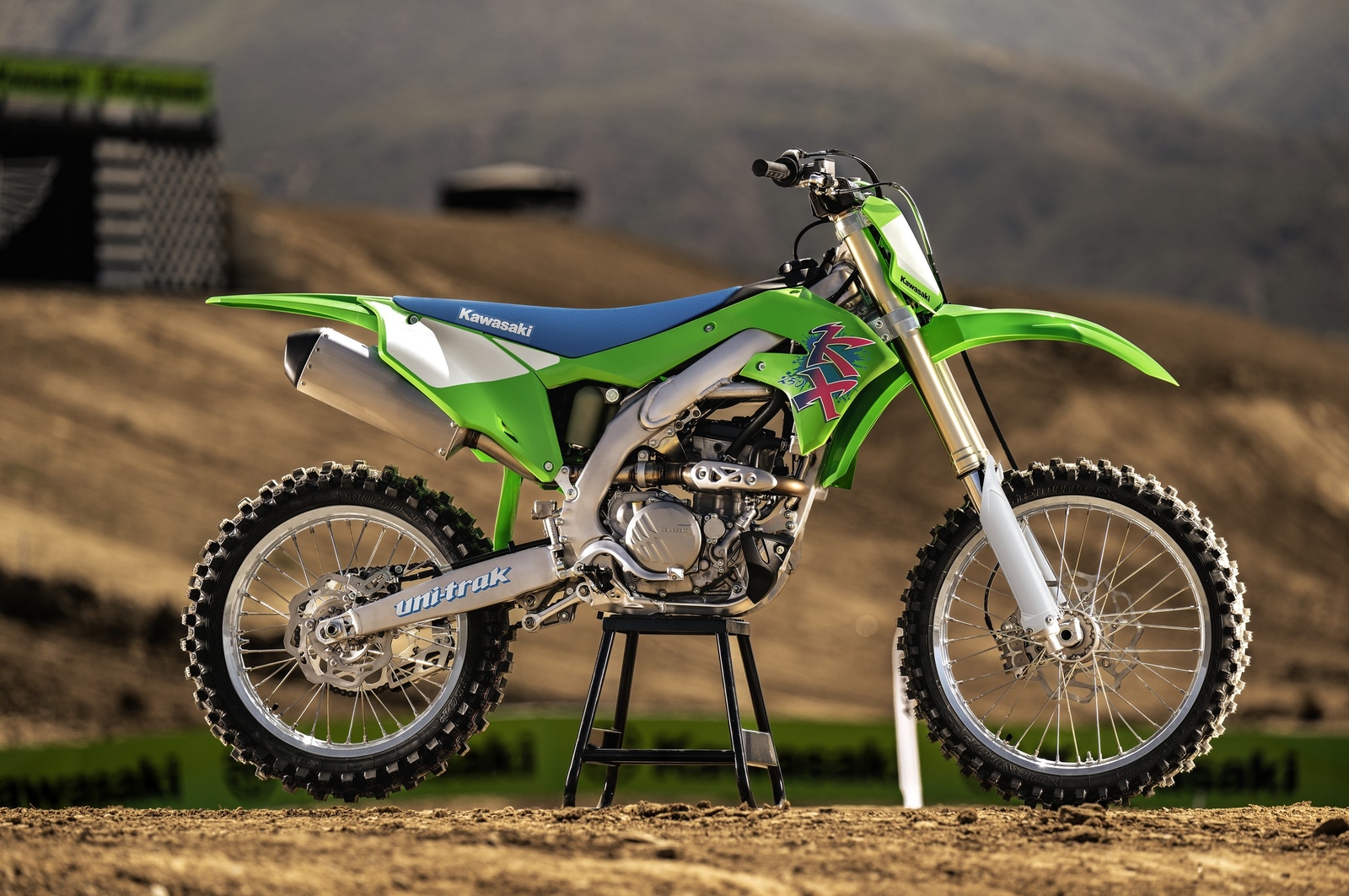

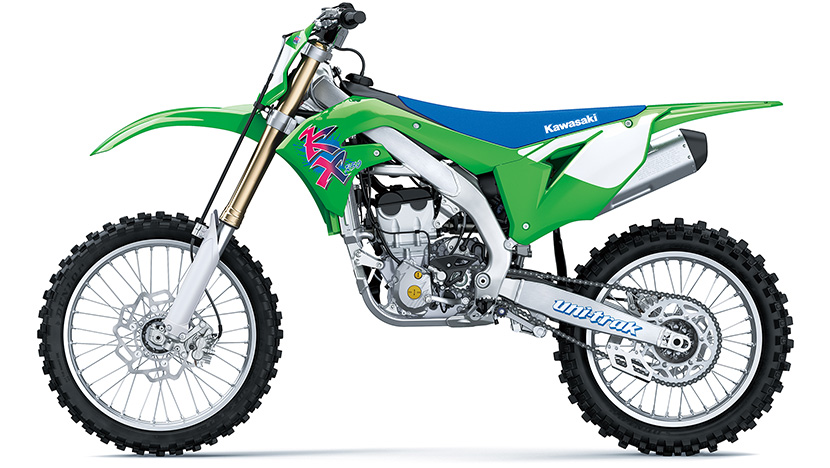

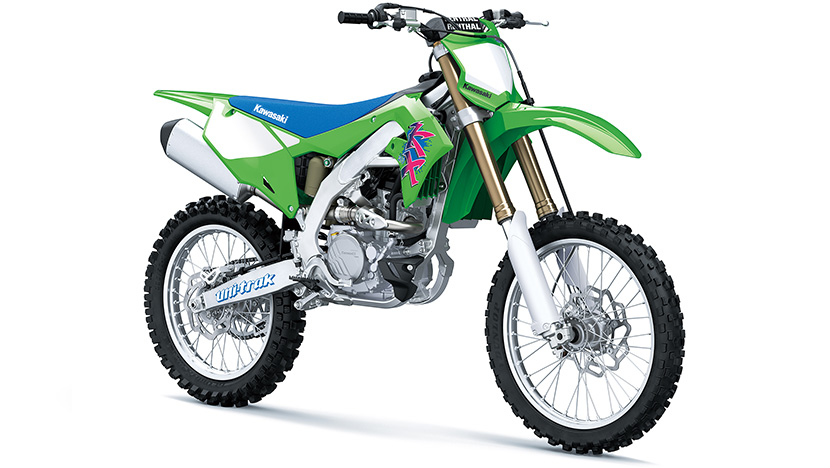

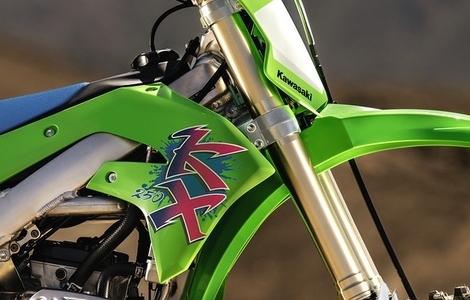

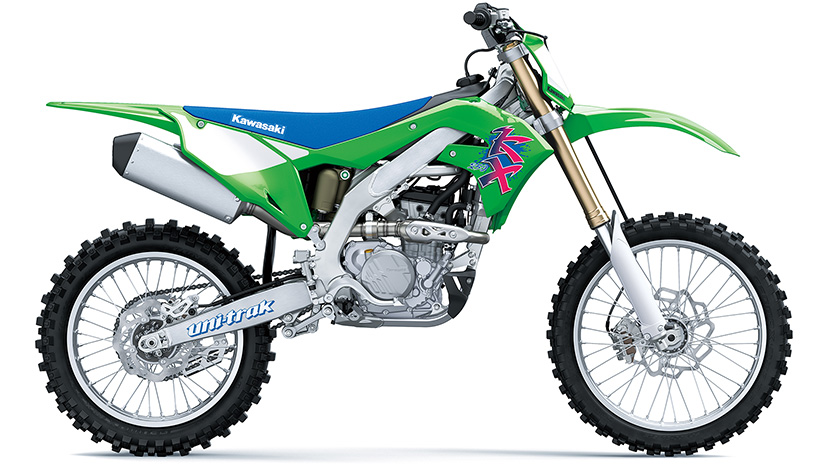

Since their introduction, Kawasaki KX motocross machines have seen constant progression as they guided many an expert rider to the top step of the podium. 2023 will mark the 50th anniversary of the series’ launch, and to commemorate this milestone, Kawasaki is bringing back an iconic livery that symbolises the aggressiveness and constant determination to push forward associated with the KX brand.
| DIMENSIONS | |
|---|---|
| Overall length | 2,190 mm |
| Overall width | 820 mm |
| Overall height | 1,270 mm |
| Wheelbase | 1,485 mm |
| Road clearance | 345 mm |
| Seat height | 960 mm |
| Curb mass | 108 kg |
| Dry mass | 102.9 kg |
| Fuel tank capacity | 6.2 litres |
| PERFORMANCE | |
|---|---|
| Max. power | - |
| Max. Power with Ram Air | - |
| Max. torque | - |
| ENGINE | |
|---|---|
| Type / Valve system | 4-stroke Single |
| Coolant System | Liquid-cooled |
| Bore x Stroke | 78.0 x 52.2 mm |
| Displacement | 249 cm3 |
| Compression ratio | 14.1:1 |
| Fuel supply | Fuel injection (ø44 mm x 1) |
| Lubrication system | Forced Lub. Semi-dry sump |
| Starting system | EL. Starter |
| Ignition system | Digital DC-CDI |
| DRIVETRAIN | |
|---|---|
| Driving system | Chain |
| Transmission | 5-speed, return |
| Primary reduction ratio | 3.350 (67/20) |
| 1st Gear ratios | 2.154 (28/13) |
| 2st Gear ratios | 1.733 (26/15) |
| 3st Gear ratios | 1.438 (23/16) |
| 4st Gear ratios | 1.235 (21/17) |
| 5st Gear ratios | 1.045 (23/22) |
| 6st Gear ratios | - |
| Final reduction ratio | 3.846 (50/13) |
| Clutch type (Primary) | Wet multi-disc, manua |
| FRAME | |
|---|---|
| Type | Tubular, semi-double cradle |
| Front Suspension | ø48 mm inverted telescopic fork with adjustable compression and rebound damping |
| Rear Suspension | New Uni Trak with adjustable dual-range (high/low-speed) compression damping, adjustable rebound damping and adjustable preload |
| Front Wheel travel | 314 mm |
| Rear Wheel travel | 316 mm |
| Caster (Rake angle) | 28.0° |
| Trail | 118 mm |
| Steering angle (left/right) | 42° / 42° |
| Front Tyre | 80/100-21 51M |
| Rear Tyre | 110/90-19 62M |
| Front Type Brake | Single semi-floating ø270 mm petal disc |
| Caliper (Front) | Dual-piston |
| Rear Type Brake | Single ø240 mm petal disc |
| Caliper (Rear) | Single-piston |
