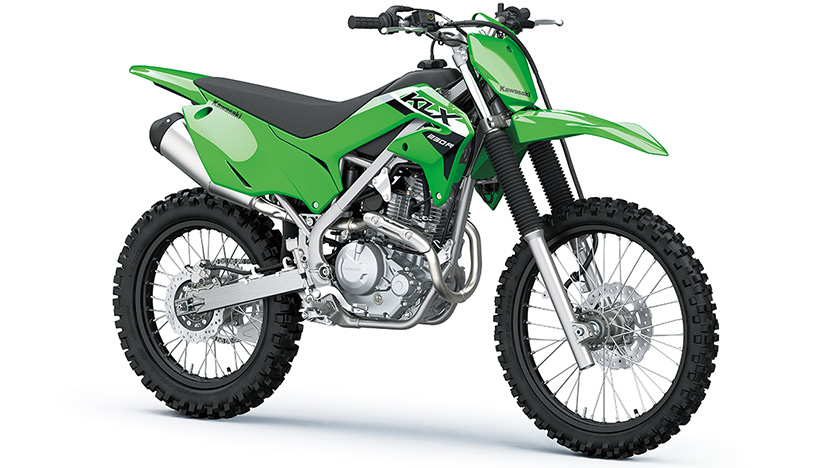

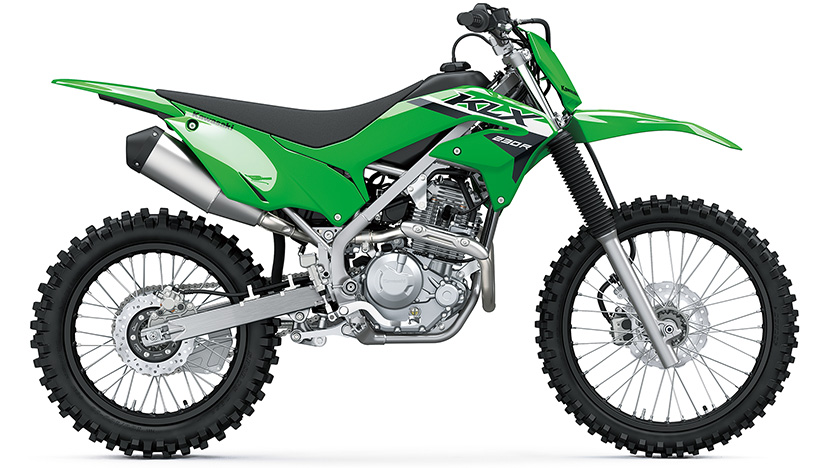

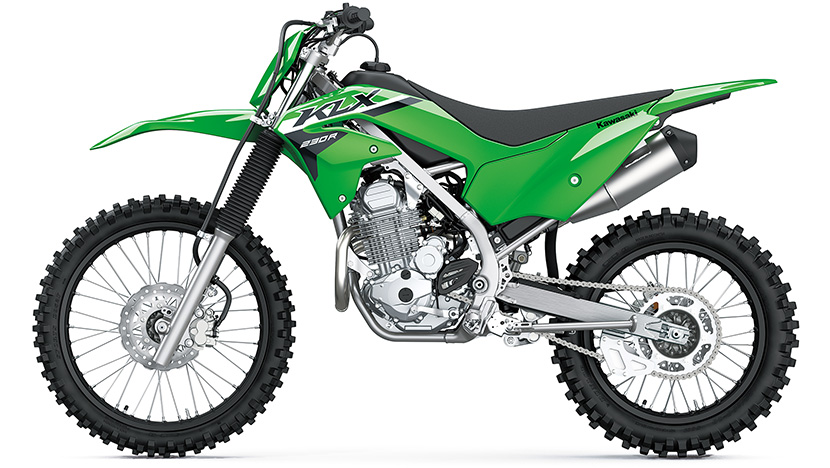

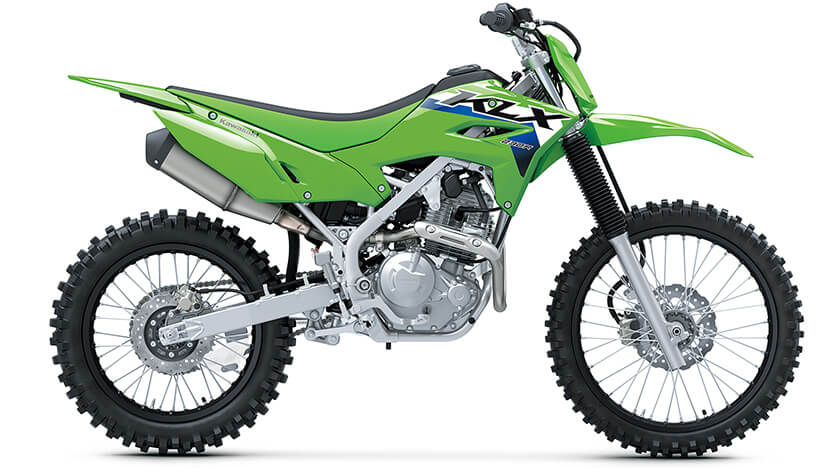

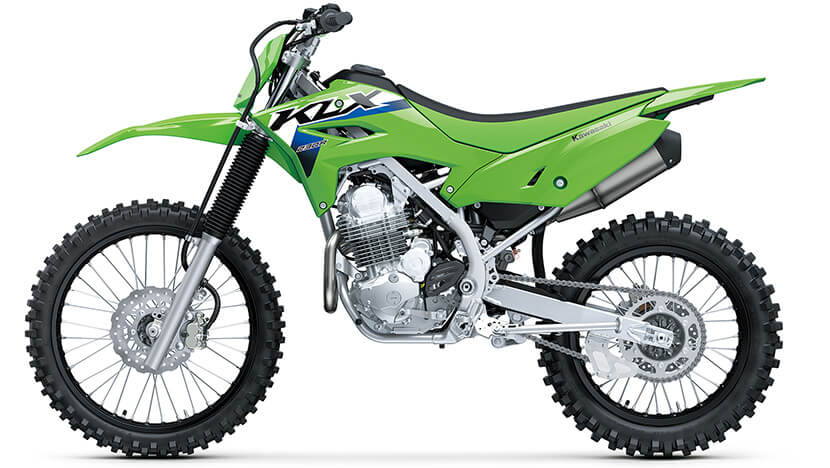

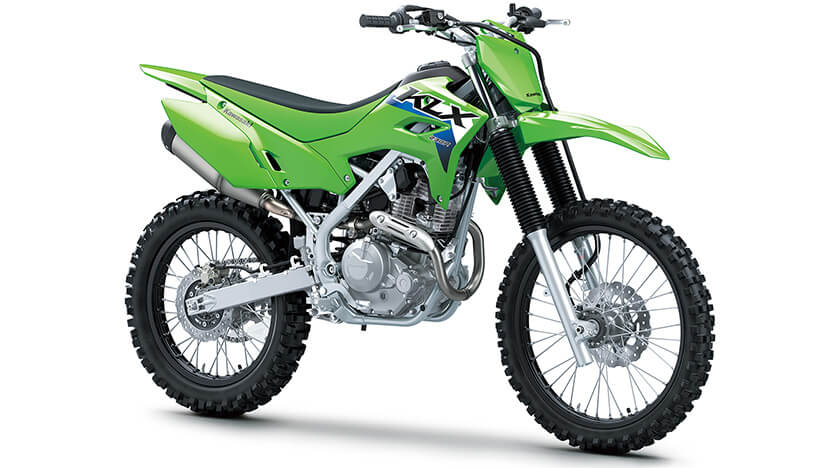

Purpose-built for riders looking for off-road fun on woodland or desert trails, Kawasaki’s new KLX230R features an engine and frame both designed from the start with trail riding in mind. The all-new 233 cm3 air-cooled, 4-stroke Single engine delivers ample low-mid range torque, and its simple construction makes it suitable for tough terrain. The all-new compact perimeter frame was designed to offer the handling stability needed for confident trail riding, while superior ground clearance and suspension travel enhance off-road capability. Extensive feedback from Kawasaki test riders helped achieve an engine-chassis balance that a wide range of riders – especially new and intermediate riders – will enjoy. KX inspiration can be found in the slim ergonomics and aggressive bodywork. The new KLX230R offers a number of advantages versus its dual-purpose brother, the KLX230: a lightweight plastic fuel tank, aluminium swingarm, light 115 kg weight, and greater wheel travel (250 mm) and ground clearance (300 mm). All in all, the new highly-capable play bike (with 21”/18” wheels) is light, manoeuvrable and powerful, making it an ideal partner for off-road adventure with friends or family.
The KLX230R features an all-new engine. Its ample, smooth torque creates an easy-to-handle character and delivers linear acceleration. The engine is compact, contributing to the bike’s easy manoeuvrability and light weight, and the simple construction afforded by air-cooling makes it ideal for trail riding.

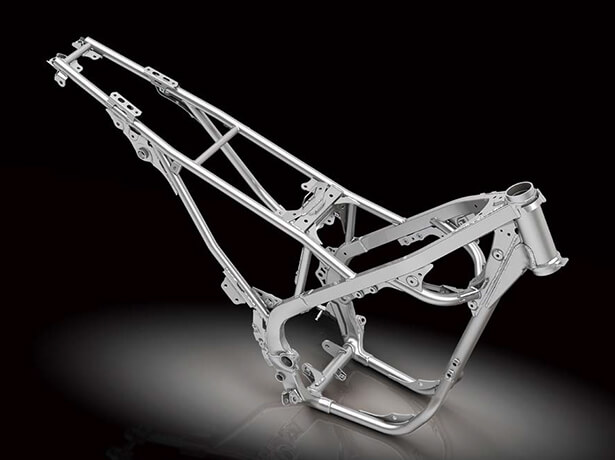

Designed from the start for off-road riding use, the all-new high-tensile steel perimeter frame offers the handling stability needed for confident trail riding. Extensive feedback from Kawasaki test riders helped achieve the highly accommodating balance between engine and frame that enables a wide range of riders to enjoy the KLX230R.
ø37 mm telescopic fork handles suspension duties up front. Its long 250 mm of travel contributes to controllability even on rough terrain. At the rear, New Uni Trak rear suspension with 251 mm of wheel travel provides great road holding ability and bump absorption. Single rear shock absorber with pressurised nitrogen gas is adjustable for preload, allowing riders to set the bike up for their weight.

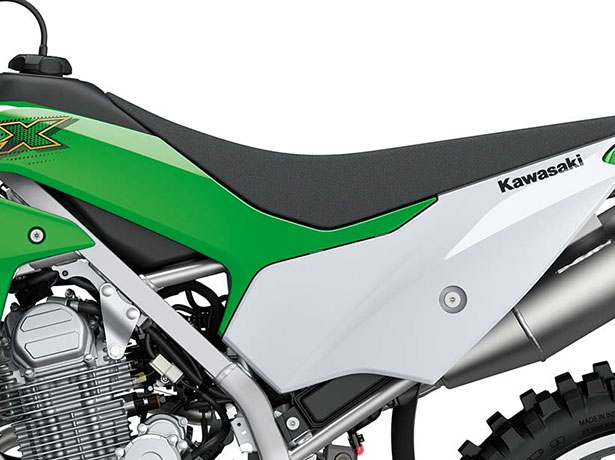

A combination of form and function, the frame was also designed to be easy to grip with the legs, offering superior chassis control to the rider. Seams between the shrouds, seat and side covers are very flush, which facilitates control as well as moving around on the bike. Like Kawasaki’s KX racers, the flat design of the tank and seat gives the rider greater freedom of movement when changing riding position, and facilitates sitting farther forward.

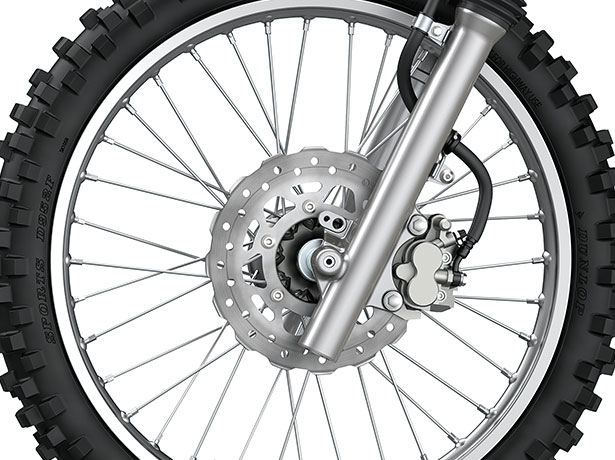

A ø240 mm front disc gripped by a twin-piston caliper offers strong, easy-to-control braking. Slowing the rear, a single-piston caliper operates a ø220 mm disc.
DIMENSIONS | |
---|---|
Overall length | 2,045 mm |
Overall width | 840 mm |
Overall height | 1,200 mm |
Wheelbase | 1,360 mm |
Road clearance | 300 mm |
Seat height | 925 mm |
Curb mass | 115 kg |
Dry mass | - |
Fuel tank capacity | 6.6 litres |
PERFORMANCE | |
---|---|
Max. power | 14.6 kW {20 PS} / 8,000 min-1 |
Max. Power with Ram Air | - |
Max. torque | 20.6 N·m {2.1 kgƒ·m} / 6,000 min-1 |
ENGINE | |
---|---|
Type / Valve system | 4-stroke Single |
Coolant System | Air-cooled, |
Bore x Stroke | 67.0 x 66.0 mm |
Displacement | 233 cc. |
Compression ratio | 9.4:1 |
Fuel supply | Fuel injection (ø32 x 1) |
Lubrication system | Forced Lub. Wet |
Starting system | EL. Starter |
Ignition system | Digital |
DRIVETRAIN | |
---|---|
Driving system | Chain |
Transmission | 6-speed, return |
Primary reduction ratio | 2.871 (89/31) |
1st Gear ratios | 3.000 (39/13) |
2st Gear ratios | 2.067 (31/15) |
3st Gear ratios | 1.556 (28/18) |
4st Gear ratios | 1.261 (29/23) |
5st Gear ratios | 1.040 (26/25) |
6st Gear ratios | 0.852 (23/27) |
Final reduction ratio | 3.538 (46/13) |
Clutch type (Primary) | Wet, multi-disc |
FRAME | |
---|---|
Type | Perimeter, high-tensile steel |
Front Suspension | ø37 mm telescopic fork |
Rear Suspension | New Uni Trak with adjustable preload |
Front Wheel travel | 250 mm |
Rear Wheel travel | 251 mm |
Caster (Rake angle) | 26.5o |
Trail | 113 mm |
Steering angle (left/right) | 45° / 45° |
Front Tyre | 80/100-21 51M |
Rear Tyre | 100/100-18 59M |
Front Type Brake | Single ø240 mm petal disc |
Caliper (Front) | Twin-piston |
Rear Type Brake | Single ø220 mm petal disc |
Caliper (Rear) | Single-piston |
